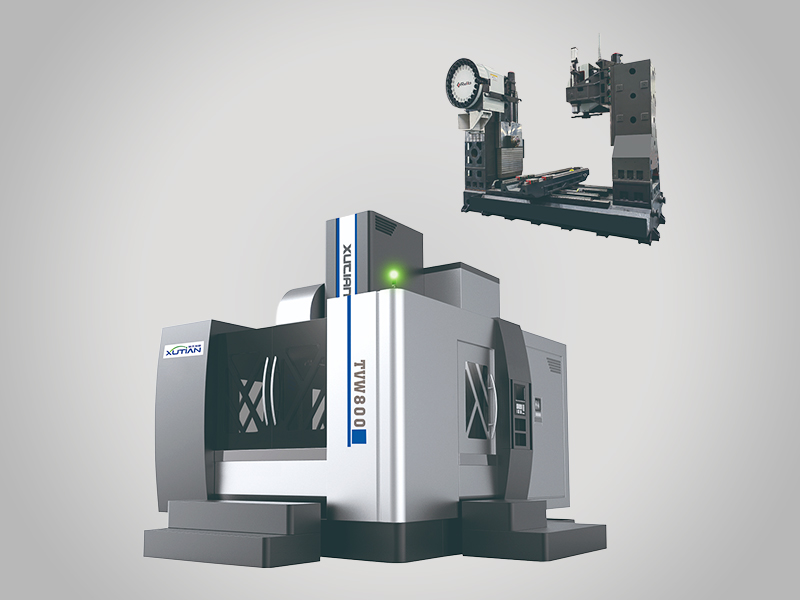

| Worktable | Worktable Size (L×W) | mm | 500×500 | 630×630 | 800×800 | 1000×1000 |
| Max. Worktable Load | kg | 1200 | 2500 | 5000 | 6000 |
| T-slot (No. of slots-slot width×pitch) | mm | 5-18×100 | 5-18×125 | 5-22×135 | 5-22×240 |
| Max. Worktable Speed | r/min | 0–16.6 | 0–16.6 | 0–11.1 | 0–11.1 |
| Worktable Indexing Angle | ° | 360×1° | 360×1° | 0.001° | 0.001° |
| Max. Workpiece Swing Diameter | mm | 1200 | 1500 | 2200 | 2500 |
| Travel Range | Worktable Lateral Travel (X-axis) | mm | 1100 | 1300 | 1500 | 1800 |
| Worktable Longitudinal Travel (Y-axis) | mm | 700 | 600 | 800 | 800 |
| Vertical Headstock Travel (Z1-axis) | mm | 720 | 800 | 800 | 800 |
| Horizontal Headstock Travel (Z2-axis) | mm | 600 | 600 | 600 | 600 |
| Distance from Vertical Spindle Center to Column Guide | mm | 765 | 836 | 940 | 940 |
| Distance from Vertical Spindle Face to Worktable Surface | mm | 150–870 | 160–960 | 200–1000 | 200–1000 |
| Distance from Horizontal Spindle Center to Worktable Surface | mm | -140–600 | -150–600 | 80–780 | 80–780 |
| Distance from Horizontal Spindle Face to Worktable Center | mm | 310–1010 | 415–1015 | 390–1090 | 390–1090 |
| Spindle | Spindle Type | / | Direct Drive | Belt Drive | Belt Drive | Belt Drive |
| Max. Spindle Speed | r/min | 8000 | 6000 | 6000 | 6000 |
| Spindle Taper | / | BT40/φ150 | BT50/φ190 | BT50/φ190 | BT50/φ190 |
| Feed Rate | Rapid Traverse Speed (X/Y/Z1/Z2) | m/min | 24/24/20/20 | 24/24/20/20 | 24/24/20/20 | 24/24/20/20 |
| Cutting Feed Rate | m/min | 1–7 | 1–7 | 1–7 | 1–7 |
| Motor | Vertical Milling Head Spindle Power | kW | 7.5/11 | 15/18.5 | 15/18.5 | 15/18.5 |
| Horizontal Milling Head Spindle Power | kW | 7.5/11 | 15/18.5 | 15/18.5 | 15/18.5 |
| Servo Motor Torque (X/Y/Z1/Y2) | N.m | 18/18/28B/18B | 28/28/28B/28B | 28/28/28B/28B | 28/28/28B/28B |
| Coolant Pump Motor Power | kW | 0.55 | 0.55 | 0.55 | 0.55 |
| Accuracy | Positioning Accuracy | mm | 0.008/300 | 0.008/300 | 0.008/300 | 0.008/300 |
| Repeat Positioning Accuracy | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| System | CNC System | / | SYNTEC | SYNTEC | SYNTEC | SYNTEC |
| Power Supply | Power Supply | KVA | ≥35 | ≥50 | ≥60 | ≥70 |
| Air Pressure | Air Demand | kg/cm2 | ≥6 | ≥6 | ≥6 | ≥6 |
| Air Flow Rate | m3/min | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 |
| Machine Dimensions | Floor Space (L×W×H) | mm | 3600×3200×3200 | 3400×4200×3500 | 3400×4200×3500 | 3800×4200×3500 |
| Machine Weight (Approx.) | kg | 9000 | 13500 | 16500 | 18500 |
| Note | Technical parameters are subject to change without prior notice. |
