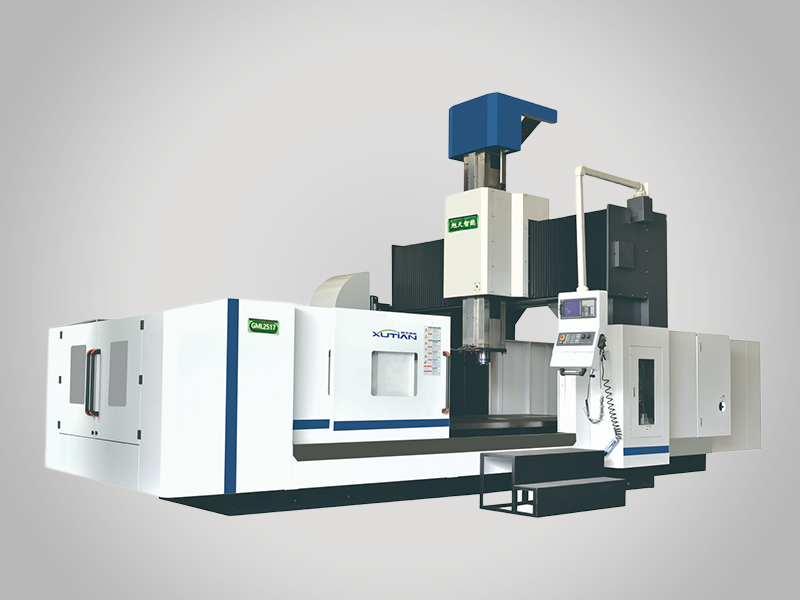

GML SERIES

GML系列主要技術(shù)參數(shù)

GML Series Optional Configurations

Angular head
Spindle through coolant & high-pressure water pump
Two-speed gearbox
Oil chiller
Taiwan CNC system

Item		Unit	GML2023	GML3023	GML4023	GML5023	GML6023	GML8023	GML3027	GML4027	GML5027
Worktable	Worktable Size (L×W)	mm	2000×2000	3000×2000	4000×2000	5000×2000	6000×2000	8000×2000	3000×2500	4000×2500	5000×2500
	Max. Worktable Load	kg	8000	12000	16000	20000	25000	30000	15000	19000	23000
	T-slot (No. of slots-slot width×pitch)	mm	9-22×200	9-22×200	9-22×200	9-22×200	9-22×200	9-22×200	9-28×250	9-28×250	9-28×250
	Worktable Longitudinal Travel (X-axis)	mm	2200	3200	4200	5200	6200	8200	3200	4200	5200
Travel Range	Crossbeam Lateral Travel (Y-axis)	mm	2600	2600	2600	2600	2600	2600	3000	3000	3000
	Headstock Vertical Travel (Z-axis)	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000
	Gantry Width	mm	2300	2300	2300	2300	2300	2300	2700	2700	2700
	Max. Height of Workpiece	mm	1250	1250	1250	1250	1250	1250	1250	1250	1250
	Distance from Spindle Face to Worktable	mm	250–1250	250–1250	250–1250	250–1250	250–1250	250–1250	250–1250	250–1250	250–1250
Spindle	Spindle Type	/	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle	Belt-driven Spindle
	Max. Spindle Speed	rpm	6000	6000	6000	6000	6000	6000	6000	6000	6000
	Spindle Taper	/	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200	BT50/Φ200
Feed Rate	Rapid Traverse Speed (X/Y/Z)	m/min	8/10/12	8/10/12	8/10/12	8/10/12	6/10/12	6/10/12	8/10/12	8/10/12	8/10/12
	Cutting Feed Rate	mm/min	1–8000	1–8000	1–8000	1–8000	1–6000	1–6000	1–8000	1–8000	1–8000
Motor	Spindle Motor Power	kW	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22	18.5/22
	Servo Motor Torque (X/Y/Z)	Nm	35/27/27	35/27/27	40/27/27	40/27/27	40/27/27	40/27/27	40/27/27	40/27/27	40/27/27
	Coolant Pump Motor Power	kW	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75	0.75
Accuracy	Positioning Accuracy (X/Y/Z)	mm	0.025/0.020/0.015	0.03/0.02/0.015	0.030/0.020/0.015	0.040/0.03/0.02	0.050/0.03/0.02	0.060/0.030/0.02	0.040/0.03/0.02	0.040/0.03/0.02	0.040/0.03/0.02
	Repeat Positioning Accuracy (X/Y/Z)	mm	0.014/0.012/0.010	0.014/0.012/0.010	0.014/0.012/0.010	0.026/0.018/0.012	0.026/0.018/0.012	0.032/0.018/0.012	0.026/0.018/0.012	0.026/0.018/0.012	0.026/0.018/0.012
Feed Drive	Linear Guide (X/Y/Z)	mm	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide	45/3; 45/3; Slide
	Ball Screw (X/Y/Z)	mm	6310/6310/5010	6316/6310/5010	8020/6310/5010	8016/6310/5010	10020/6310/5010	10040/6310/5010	6316/6316/5010	8020/6316/5010	8016/6316/5010
System	CNC System	/	FANUC	FANUC	FANUC	FANUC	FANUC	FANUC	FANUC	FANUC	FANUC
Power Supply	Power Supply	KVA	55	55	55	55	55	55	55	55	55
Air Pressure	Air Demand	kg/cm2	≥6	≥6	≥6	≥6	≥6	≥6	≥6	≥6	≥6
	Air Flow Rate	m3/min	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
ATC Option	ATC Type	/	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC	Disc-type ATC
	ATC Capacity	pcs	24	24	24	24	24	24	24	24	24
	Max. Tool Weight	kg	15	15	15	15	15	15	15	15	15
	Max. Tool Diameter (Full)	mm	110	110	110	110	110	110	110	110	110
	Max. Tool Diameter (Adjacent Empty)	mm	200	200	200	200	200	200	200	200	200
	Max. Tool Length	mm	350	350	350	350	350	350	350	350	350
	Tool Change Time	s	3.8	3.8	3.8	3.8	3.8	3.8	3.8	3.8	3.8
Machine Dimensions	Floor Space (L×W×H)	mm	6040×4700×4100	8200×4700×4100	10150×4700×4100	12150×4700×4100	13970×4700×4100	19600×4700×4100	8200×5500×4100	10150×5500×4100	12150×5500×4100
	Machine Weight (Approx.)	kg	23500	27500	31500	35000	39000	42500	30500	34500	39500
Note	Technical parameters are subject to change without prior notice.
